• New Model HH-1531ABV
• 2 Year Warranty
• D-Handle
• 10" Bit Diameter vertical rig mounted
• 3" Max bit Diameter handheld.
• 3 Speeds
• 900 / 2100 / 4150 RPM
• Low noise motor.
• 15 Amps 115v
• 1,600 Watts
• 7% Increase in Power!
• GFCI is integrated into the power cord.
• 5/8-11 Thread adaptor included.
• 1-1/4"-7 Thread adaptor included.
• Core removal lasso included.
• Built-in on/off switch with motor overload protection
• Roller carriage for smooth and precise drilling and longer life.
• Right and left-hand feed handle positions on the carriage.
• Wheels for easy moving at the job site.
• Horizontal & vertical bubble levels on the drill.
• 2" x 2" lightweight extruded steel column for strength and precision.
• The toolkit includes 2 wrenches, 2 Allen keys, core removal wedge, anchor stud w/ washer, and nuts and pouch.
• A carrying case is included for the drill motor.
• Shibuya WCR Water rings are sold separately.
• Vacuum Pump included.
• Lifetime free clutch adjustments**

Replaces Old Model RH-1531 P/N: DR2024

New Shibuya HH-1531ABV With Pump

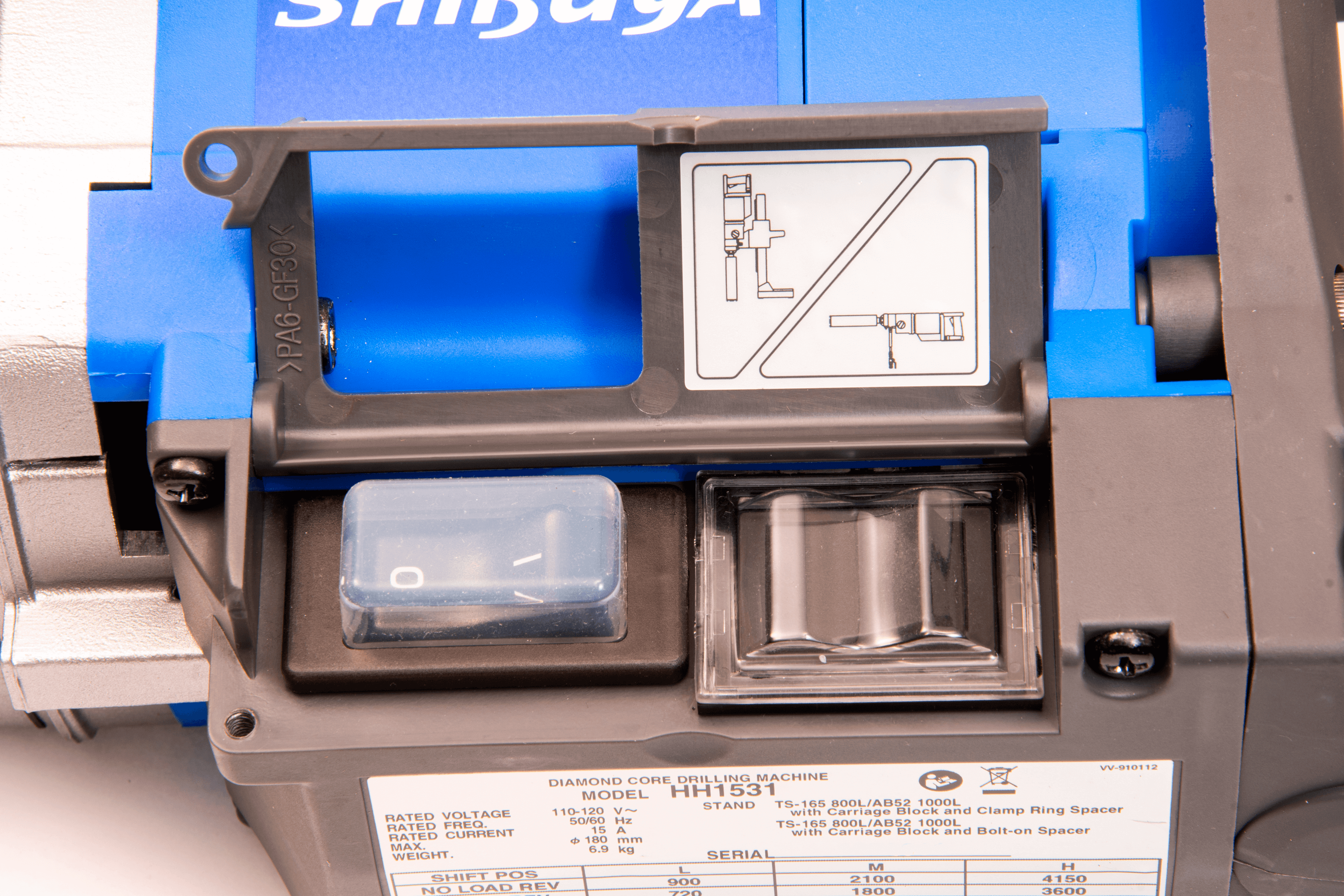

Looking for raw power, mount this powerful little core drill on the ABV column and base and unleash its full potential. This little powerhouse will drill a 10” hole when mounted to the ABV drilling system. Open the concealed side door and change Rig/Handheld mode switch and Use the Drill in the High or Med. mode and drill up to 3” holes handheld. GFCI and Slip clutches keep your operators productive and safe while working. Easy to see bubble levels help keep your holes straight and level. Variable speed handheld trigger for an easy bit starting. Move the water connection to one of the 3 convenient locations, water flow/shut off valve included. The HH-1531 can be used Wet or Dry. Keep all your accessories and bit adapters in the included caring case. The HH-1531 is ideal for drilling concrete, reinforced concrete, brick, block & stone. This heavy-duty wet and dry diamond core drill has high torque output. Lifetime Free Clutch Adjustments** included with the drill just ship the drill back to DITEQ and we will inspect the drill and Adjust the slip clutch. **Freight cost not included

Includes the HH-1531 carrying case, & Vacuum Pump
